Grapple rotators

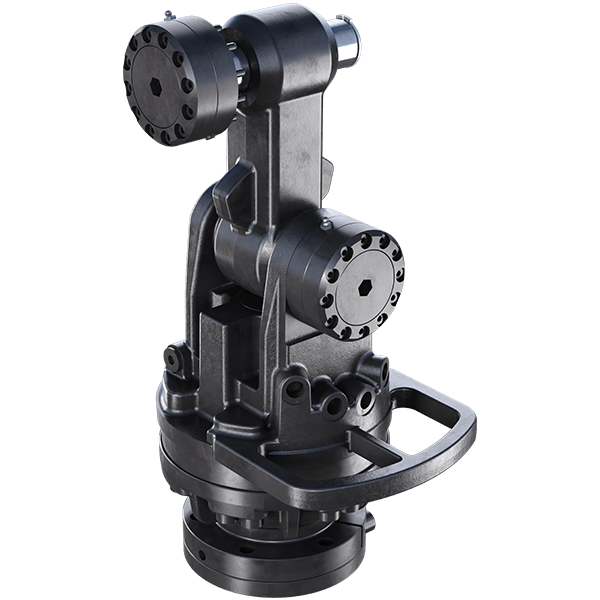

Black Bruin grapple rotator is the top choice for fast and productive loading, when precision and strength are required.
Christmas and New Year closure at Black Bruin. See detailed information.
Technical specifications
Technical specifications
Axial load capacity (static)
[kN]
150
Displacement per rotation
[ccm]
788
Recommended oilflow
[l/min]
20
Max. rotation speed
[rpm]
30
Max. torque (25 MPa)
[Nm]
3000
Torque per 1 MPa
[Nm]
120
Weight
[kg]
73
Options
Links
I-100 200 mm
Yes
Brakes (lower or upper)
Link without brakes
Yes
1x Brake L (400-550 Nm)
Yes
Technical specifications
Axial load capacity (static)
[kN]
100
Displacement per rotation
[ccm]
1000
Rotation max. oilflow
[l/min]
35
Max. rotation speed
[rpm]
35
Max. torque (25 MPa)
[Nm]
3300
Weight
[kg]
65
Options
Links
I-100 200 mm
Yes
Brakes (lower or upper)
Link without brakes
Yes
1x Brake L (400-550 Nm)
Yes
